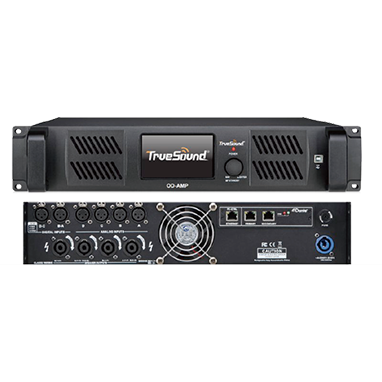

Four-channel DSP professional digital amplifier

● 50 preset storage slots

● High sampling rate of 96KHz

● Customized European digital amplifier module

● Built-in DSP digital processing module

● Ethernet TCP/IP network control port

● 4.3-inch capacitive touchscreen with a resolution of 480x272

● DANTE and AES67 digital audio signal transmission, supports Daisy-Chain and hand-in-hand cascading

● IIR/FIR high/low pass/bandpass electronic crossover, up to 512 taps for FIR filters, 8 windowing algorithms available

● FIR phase compensation and coefficient generation wizard, adjustable FIR latency, supports third-party FIR coefficient import

Channel Count: 4

Analog Inputs: 4 x XLR, Level: +13dB

Digital Inputs: 2 x XLR, 4-channel AES/EBU, 2x RJ-45, 4-channel DANTE

THD @ 90V (1kHz): <1%

Signal-to-Noise Ratio (Dynamic Range): >102 dB (A-weighted, AES-17 Filter)

Frequency Response: 20 Hz - 20 kHz ± 0.5 dB (8Ω load, within 1 dB of rated power), DSP Frequency Response: 20 Hz - 20 KHz, -0.5dBu at 20 Hz and 20 kHz

Maximum Output Power: 4Ω 4 x 950W, 8Ω 4 x 650W; or 70V direct drive

Output Circuit: D-class amplifier module - full-bandwidth PWM modulator, achieving ultra-low distortion

Operating Range: 90-245 VAC (50/60Hz); manual hardware selection of 110/220 VAC available

AC Power Supply: Independent switch-mode power supply

Protection: Overcurrent, over/under voltage, output DC protection, and temperature protection
